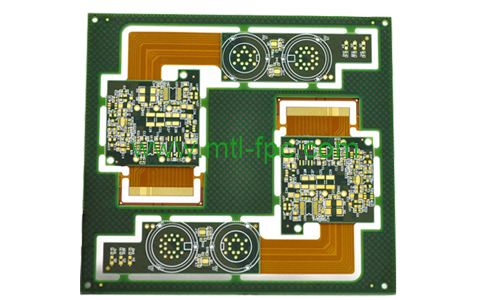

HDI Rigid-Flex PCB





层数/ Layers:6-Layers

板厚/ Thickness: 1.6mm/0.15mm

最小孔径/ Min.Hole Size: 0.20mm

线宽线距/ Width/Spacing:3.0/3.0mil

表面处理/ Surface Treatment: ENIG

补强/ Stiffener:N/A

特别要求/ HDI : 1+N+1






Technology Capability Introduction:

Design: 1 to 16 layers, plated-through(Rigid-Flex PCB)

Conductor width min.:0.076mm
Annular ring min.:0.1mm
Via min.: 0.15mm
Surfaces:Chemical gold (recommended),
Materials: FR4, Polyimide, high Tg polyimide Materials
FPC Material thickness: 0.15mm min.
Copper thickness: from 18um
Stiffener available thicknesses are: 0,075mm - 3,20mm.(Steel, or PI, or FR4)
Polyimid-Stiffener: 0,025mm - 0,225mm
FR4-Stiffener: 0,075mm - 3,20mm
Max. size:250mm x 450mm larger on request
Cover Coverlay or flexible solder-stop
Cover bridge Coverlay: ≥ 200µm

UL certification for flexible circuit boards
Impedance control:Yes (10% tolerance)
